View Tasks

The View Tasks tab breaks into two groups: the Help Tasks group and the Docking Tasks group.

Help Tasks

The Help Group provides links to technical support information.

1. Click the Technical Support icon to open your web browser and link to the Technical Support Contact page on the Keri Systems web site.


2. Click the Online Help icon to open this online help documentation file.

About the Software

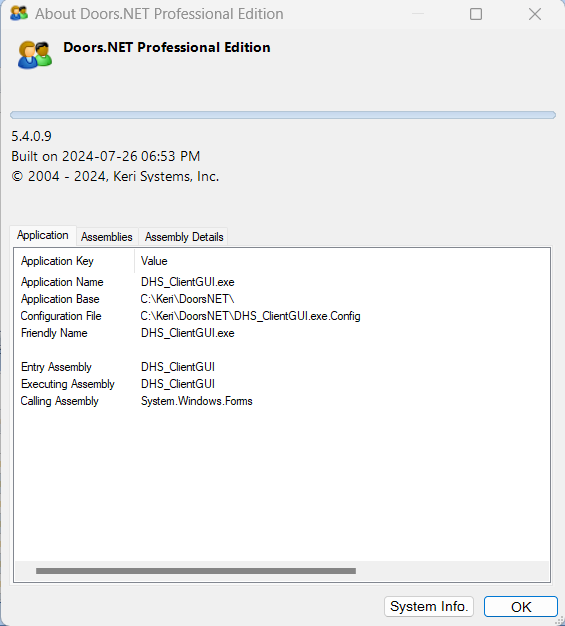

1. Click the About icon to open a window providing software revision information for Doors.NET.

2. Click the Details button to view detailed information on the software release. Information within this window may be requested by Support Technicians to help them debug an issue that you may have.

3. Click the System Info button to open Microsoft's System Information window. This window provides technical details on the host PC. Information within this window may be requested by Support Technicians to help them debug an issue that you may have.


Docking Tasks

The Docking Group helps you manage how quick-open status tab windows are displayed within the data display space of the program. It also allows you to enable links to additional program features.

• The Show All icon pins open all quick-open status tabs into partitioned windows in the data field.
• The Hide All icon un-pins and closes all quick-open status tab windows.
• The Pin All icon pins open any currently open quick-open status tab window.
• The Unpin All icon un-pins and closes any quick-open status tab window.
• The Photo Recall icon opens a window that displays cardholder photo IDs upon credential presentation if such photos are associated with cardholders.
• The Display Colors icon opens a window that allows you to define a custom color scheme for windows within the program.


Advanced View

The Advanced View icon allows access to advanced program features within the program. Advanced View is not enabled by default on a standard installation for the default System Administrator username and password (admin/admin).

The following features are displayed within the program when Advanced View is enabled:

• Email/SMS messaging on event
• Configure Alert events requiring Operator acknowledgment
• Create custom filtering for event monitors
• Trace specific event types
• Reflections Express™ Video  implementation

The ability to display additional hardware configuration options also appears.

Click here for instructions on enabling Advanced View.
