32-bit Mifare CSN Credential Type

This section explains how you can add the 32-bit Mifare CSN (Card Serial Number) and as active card format. Once added, when the reader recognises the credential type, it will pass all 32-bits of the card number to the controller.

  1. From within Door.NET, go to Setup >> Credential Types.

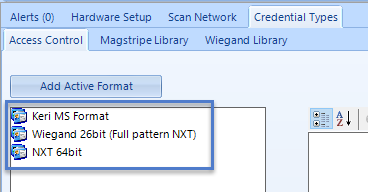

  2. On a new installation, you will see 3 active formats already added.

    3 formats

  3. Click the Add Active Format button.
  4. Enter a name for the new format.

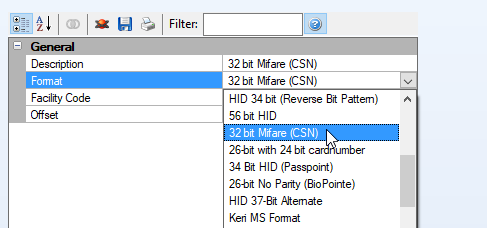

  5. From the Format selection drop-down list, select 32-bit Mifare (CSN).

    Select Mifare CSN

  6. Save the new active format.
  7. The format will now be active on all NXT-MSC or SCP controllers on the network.
  8. In Live Events, when you present a card, you will be getting 'Access Denied - Not in File', instead of 'Access Denied - Unknown Wiegand Format'.
